M12 Cable Wiring Infographic

Learn how to use M12 cables for communication and for I/O signals. Check out the wiring colors for the various pin numbers and coding arrangements for M12 cable varieties.

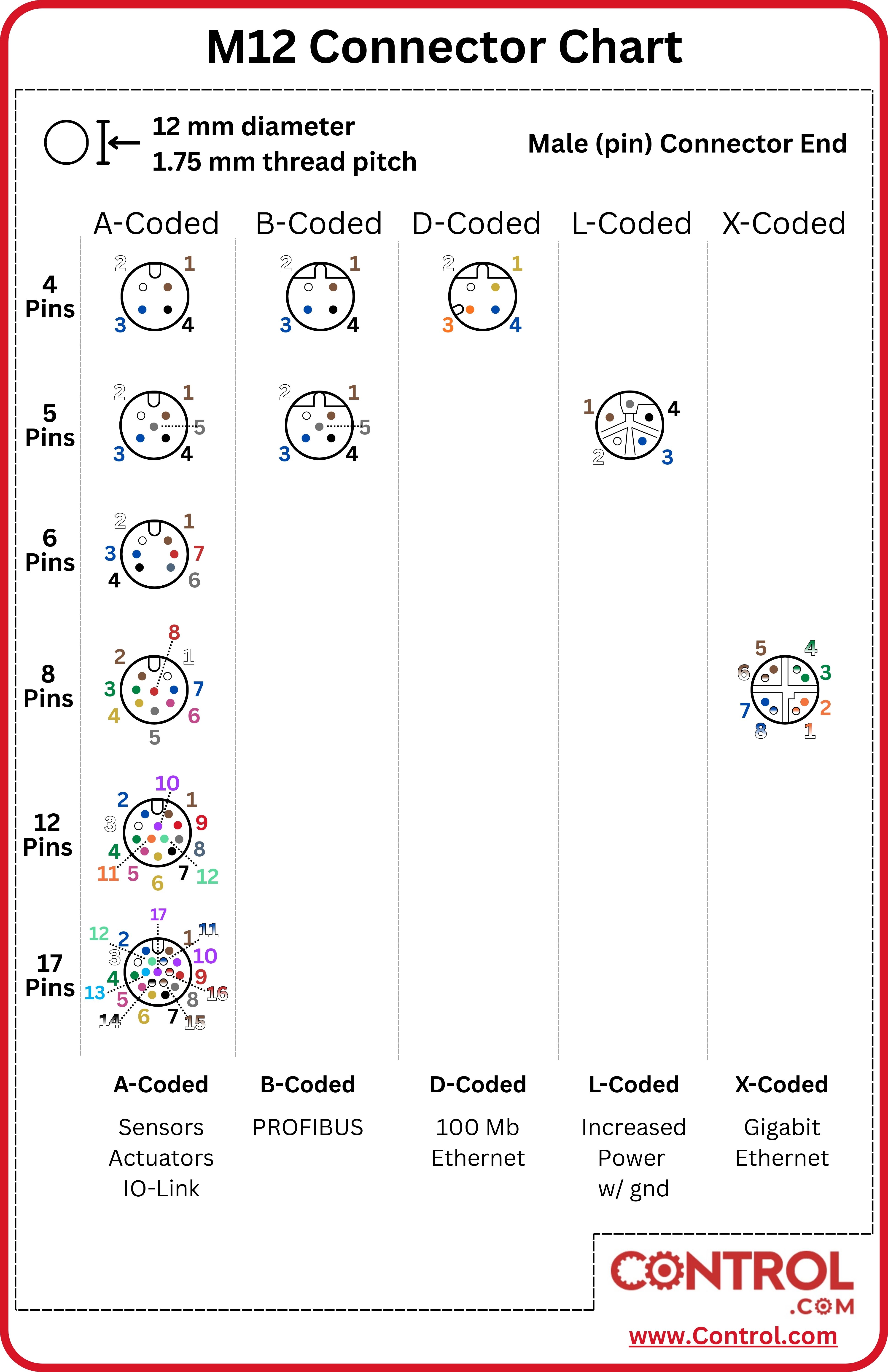

Click to expand for a full-size, printable wiring diagram poster:

Curious about other industrial cable types and connections? Check out our tech article and textbook pages:

• Choosing the right cables for industrial automation
• What Does 'Skin Effect' Mean to You?
• Understanding Industrial Connections: RJ45, Fiber, M12, and SFP
• Textbook: Electrical Signal and Control Wiring
